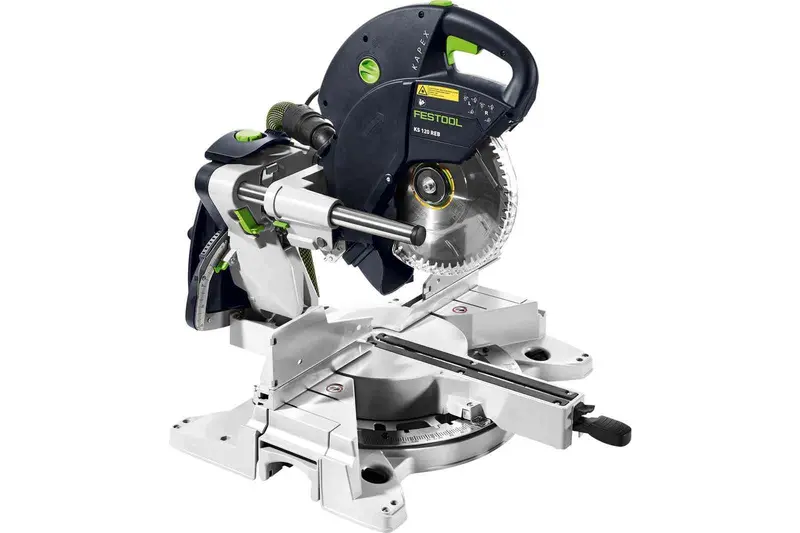

Festool Kapex Ks 120 Reb Sliding Compound Mitre Saw – 240V

Description

Quality down to the finest detail.

Guides left, guides right. Even where others only pretend to do so. With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play.

• Twin-column guide with two bearings for unique precision
• Dual-line laser for an accurate indication of the cutting line
• Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
• Special cutting position for cutting depths up to 120 mm
• FastFix saw blade changing for adaptation to the working material
• Twin-column guide for accurate cuts
• Precision angle transfer via bevel and dual-line laser
• Compact, lightweight design for convenient transportation
• Safety brake

Main applications

• Trimming skirting boards and cornices up to 120 mm in height – no calculations
• Cutting boards and panels up to 305 x 88 mm
• Trimming crown mouldings up to 168 mm in their original wall position
• Trimming square timber and beams up to 88 mm thick

Power consumption 1 600 WIdle engine speed 1 400 – 3 400 min⁻¹Saw blade diameter 260.00 mmCutting depth 90°/90° 305 x 88 mmCutting depth at 45°/90° 215 x 88 mmSpecial cutting depth 90°/90° 60 x 120 mmCrown moulding diagonal cut 45°/90° 168.00 mmInclination angle 47/47 °Mitre angle 50/60 °Dimensions (W x D x H) 713 x 500 x 470 mmWeight 23.10 kgDust extraction connection dia. 27/36 mmSpecial cut. depth 45°/90° (left) 40 x 120 mmSpecial cutting depth 45°/90° (right) 20 x 120 mmCutting depth 50°/90° (left) 196 x 88 mmCutting depth 60°/90° (right) 152 x 88 mmCutting depth 45°/45° (left) 215 x 55 mmCutting depth 45°/45° (right) 215 x 35 mmCrown moulding diagonal cut at 90°/90° 168.00 mmWork height 900.00 mmDrive type Mains
