Description
Collecting garden tractor, powered by a strong STIGA Twin-cylinder engine and equipped with a 122 cm cutting deck and 300L grass collector. Ideal for gardens up to 6500 sqm.

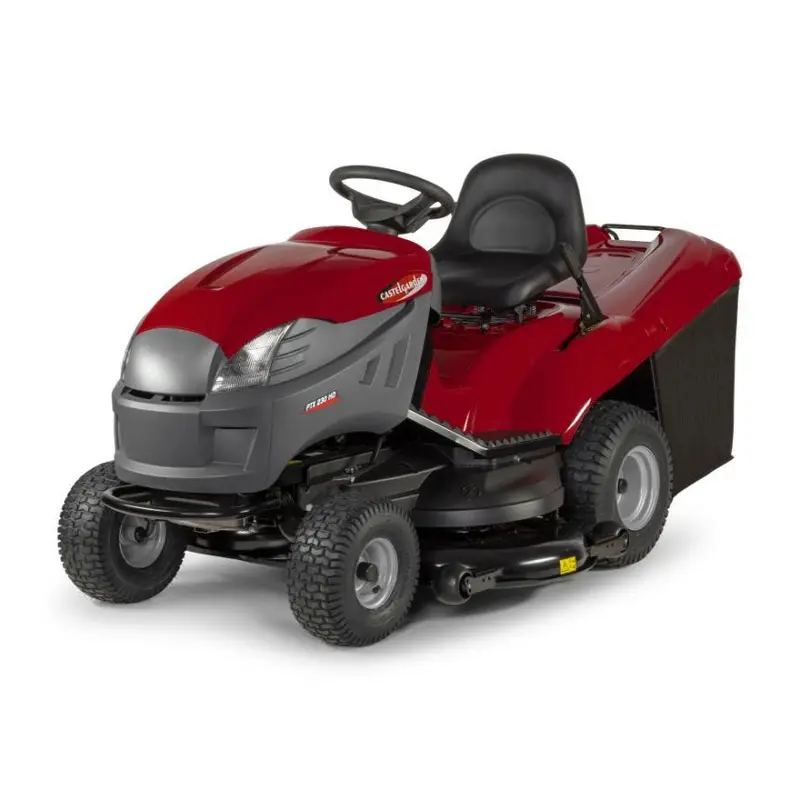

Castelgarden PTX230 HD is a collecting garden tractor, powered by a strong and robust STIGA ST 650 twin-cylinder engine, with 653 cc displacement and a power output of 11,6 kW @ 2600 rpm. The cutting width is 122 cm and the cutting deck can be adjusted to 7 positions, from 30 to 90 mm. The collector bag can pack up to 300L of cut grass. Blade engagement is electric, so it can be easily operated from a button on the user’s interface. This machine is made for very big areas, up to 6500 sqm.
CUTTING SYSTEM
| Cutting width | 122 cm |
|---|---|
| Reverse mowing | Yes |
| Blade rotation | Timed |
| Cutting height adjustment | Manual with lever |
| Cutting height positions | 7 positions |
| Cutting height range | 30 – 90 mm |
| Number of blades | 2 |
| Blade type | Winged |
| Additional cutting method | Rear discharge, Mulching |
| Blade engagement type | Electric |
| Minimum uncut radius | 90 cm |
| Cutting method | Collecting |
POWER
| Engine Brand | STIGA |
|---|---|
| Engine model | ST 650 Twin Powered by STIGA |
| Displacement | 635 cm³ |
| Engine rotation speed | 2600 rpm |
| Battery Voltage | 12 V |
| Choke | Manual |
| Engine cooling | Air |
| Fuel tank capacity | 7 l |
| Maximum working area | 6500 |
| Battery capacity | 18 Ah |
| Power source | Petrol |
| Power | 11.6 kW |
EQUIPMENT
| Collector emptying | Manual |
|---|---|
| Collector capacity | 300 l |
| Steering wheel | Castelgarden ergonomic with soft grip |
| Seat type | Castelgarden smart with mid back support |
| Seat adjustment | Screws |
| Dashboard | Yes with LED |
| Front wheel size | 15×6.00-6 |
| Rear wheel size | 18×8.50-8 |
| Headlights | Conventional |
| Bumper | Yes |
| Washing link | Yes |
| Collector type | Textile |
| Pivoting front axle | Yes |
| Antiscalp wheels | 4 |
| Safety system | Seat with Safety Contact Breaker |
TOOLS KIT
| Mulching kit | Optional |
|---|---|
| Battery charger | Optional |
| Trailer hitch kit | Optional |
OVERALL DIMENSIONS
| Pack weight | 286 kg |
|---|---|
| Product length | 2550 mm |
| Product width | 1280 mm |
| Product height | 1310 mm |
| Product weight | 236 kg |
